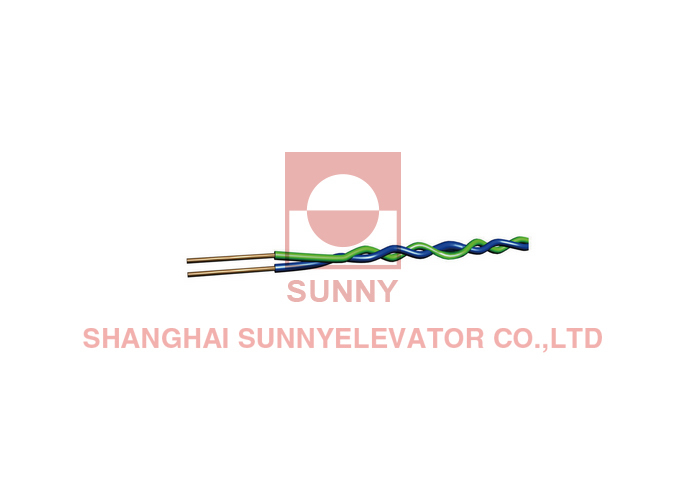

High flexibility twisted cable without sheath RVS PVC insulated wire

High flexibility twisted cable without sheath RVS PVC insulated wire
High flexibility twisted cable without sheath RVS PVC insulated wire
High flexibility twisted cable without sheath RVS PVC insulated wire High flexibility twisted cable without sheath RVS PVC insulated wire High flexibility twisted cable without sheath RVS PVC insulated wire

큰 이미지 :  High flexibility twisted cable without sheath RVS PVC insulated wire

제품 상세 정보:
Place of Origin: China
브랜드 이름: SUNNY
인증: CE,ISO9001
Model Number: RVS
결제 및 배송 조건:
Minimum Order Quantity: 100meters
가격: 협상 가능
Packaging Details: in Carton Box
Delivery Time: 7~15 days
Payment Terms: L/C,Western Union,T/T
Supply Ability: 50000 meters/week
접촉

High flexibility twisted cable without sheath RVS PVC insulated wire

설명
Name: High flexibility twisted cable Transportation: DHL TNT FEDEX
Warranty time: 12 Months Applicable: Elevator Equipment
Category: elevator parts Specification: 2*0.5
Model: High flexibility twisted cable Product: High flexibility twisted cable
강조하다:

RVS PVC insulated wire

,

high flexibility twisted cable

,

elevator electrical wire

High Flexibility Twisted Cable Without Sheath RVS PVC Insulated Wire
Product Attributes
Attribute Value
Name High flexibility twisted cable
Transportation DHL TNT FEDEX
Warranty time 12 Months
Applicable Elevator Equipment
Category elevator parts
Specification 2*0.5
Model High flexibility twisted cable
Product High flexibility twisted cable
Product Description
High Flexibility Twisted Cable Without Sheath RVS PVC Insulated Wire
Application: Applied for the internal connection of the cabin, machine room, and temporary connection in the shaft.
Features:
  • PVC insulation
  • Rated voltage AC300/300V, rated temperature 70℃
  • The conductor consists of multi-copper wires or tinned copper wires are available
Cable Parameters
Type Specification Conductor Structure (quantity/diameter) Finished product (max.outer dia.)(mm) Insulation resistance at 70°C(Ω/KM) DC resistance of conductor at 20℃ (Ω/KM)
RVS 2*0.5 28/0.15 6.0 ≥0.016 ≤39.0
RVS 2*0.75 42/0.15 6.2 ≥0.014 ≤26.0
RVS 2*1.0 57/0.15 6.6 ≥0.011 ≤19.5
RVS 2*1.5 84/0.15 7.2 ≥0.010 ≤13.3
RVS 2*2.5 140/0.15 8.2 ≥0.009 ≤7.98
RVS 2*4 224/0.15 9.2 ≥0.007 ≤4.95
RVS 2*6 189/0.2 10.6 ≥0.006 ≤3.30
High flexibility twisted cable without sheath RVS PVC insulated wire 0 High flexibility twisted cable without sheath RVS PVC insulated wire 1 High flexibility twisted cable without sheath RVS PVC insulated wire 2 High flexibility twisted cable without sheath RVS PVC insulated wire 3
Frequently Asked Questions
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won't break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure, elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any certifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
