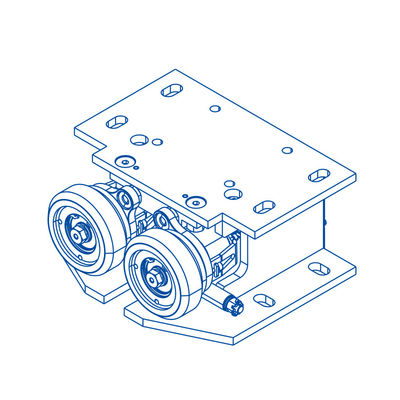

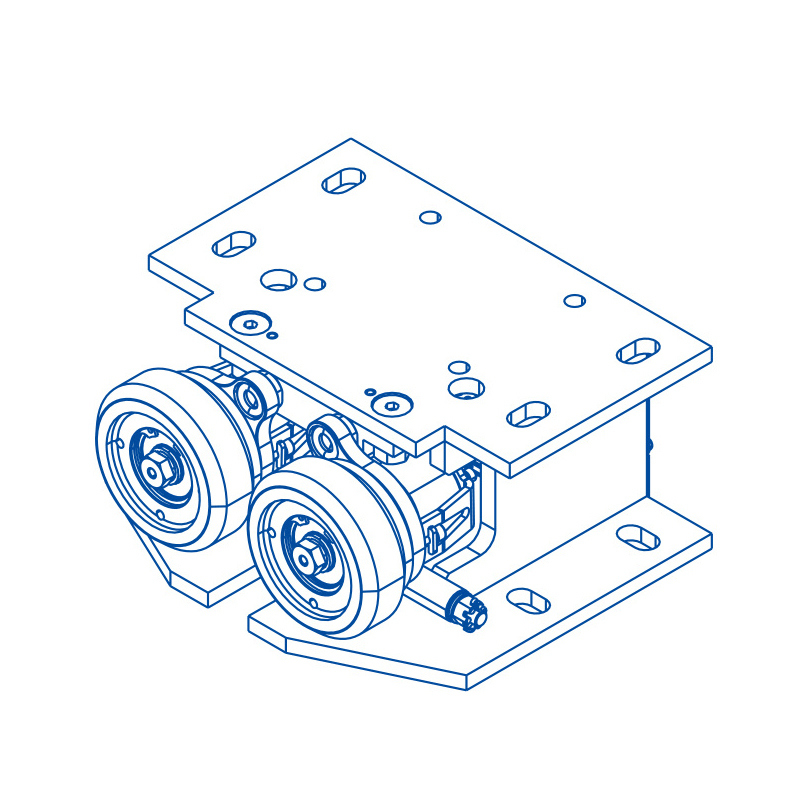

Diameter Of Roller 90 Roller Clamp Elevator Spares Rated Speed ≤6m/S

Diameter Of Roller 90 Roller Clamp Elevator Spares Rated Speed ≤6m/S
Diameter Of Roller 90 Roller Clamp Elevator Spares Rated Speed ≤6m/S

큰 이미지 :  Diameter Of Roller 90 Roller Clamp Elevator Spares Rated Speed ≤6m/S

제품 상세 정보:
원래 장소: 중국
브랜드 이름: SUNNY
인증: CE,ISO9001
모델 번호: SN-RBD
결제 및 배송 조건:
최소 주문 수량: 1개
가격: $50~100
포장 세부 사항: 카톤 박스에서
배달 시간: 7 ~ 15 일
지불 조건: L/C, T/T, 웨스턴 유니온
공급 능력: 0 달

Diameter Of Roller 90 Roller Clamp Elevator Spares Rated Speed ≤6m/S

설명
이름: 롤러 클램프 정격 속도: ≤6m/s
롤러 직경: 90 가이드 레일의 너비: 9/10/15.88/16/19mm
모델: 롤러 클램프 사용된: 엘리베이터 부품
인증: 시운전 보고서 보증 시간: 1년
유형: 롤러 클램프 제품: 롤러 클램프

Diameter Of Roller 90 Roller Clamp Elevator Spares Rated Speed ≤6m/S



Parameter Table



Model number

Type

RBD roller guide clamp
Rated speed(m/s) ≤6

Applicable elevator guide rail width

Rail width(mm)

9/10/15.88/16/19
Diameter of roller 90
Frictional Force(N) 150-250



Diameter Of Roller 90 Roller Clamp Elevator Spares Rated Speed ≤6m/S 0



Diameter Of Roller 90 Roller Clamp Elevator Spares Rated Speed ≤6m/S 1



Diameter Of Roller 90 Roller Clamp Elevator Spares Rated Speed ≤6m/S 2



Diameter Of Roller 90 Roller Clamp Elevator Spares Rated Speed ≤6m/S 3



Diameter Of Roller 90 Roller Clamp Elevator Spares Rated Speed ≤6m/S 4



FAQ
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
