제품 상세 정보:
|
| 이름: | 영구 자석 동시에 일어나는 도어 오퍼레이터를 여는 2-leafs 회관 | JJ: | 600~1200 |
|---|---|---|---|
| 사용된: | PM 모터 | 보호 수준: | IP20 |
| 설치: | 차 위 설치 | 해당되는: | 안스기 엘리베이터 |
| 제품명: | 리프트 도어 운영자 | 오프닝 방법: | 2 패널 센터 개시 |
| 모델: | 영구 자석 동시에 일어나는 도어 오퍼레이터를 여는 2-leafs 회관 | 유형: | 영구 자석 동시에 일어나는 도어 오퍼레이터를 여는 2-leafs 회관 |
| 강조하다: | 2-Leafs Center Opening Elevator Door Operator,Permanent Magnet Synchronous Motor Lift Door Operator,IP20 Protection Permanent Magnet Synchronous Door Operator |
||

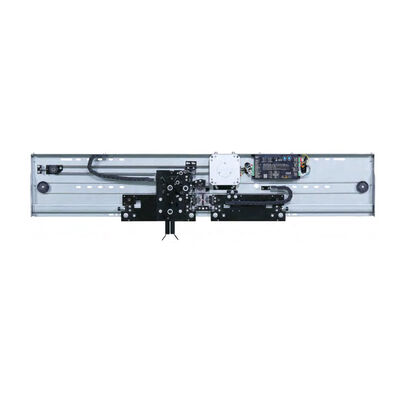

2-Leafs Center Opening Permanent Magnet Synchronous Door Operator For Elevator Door Parts
Product Features:
| High efficient and energy saving: | Using permanent magnet synchronous motor, featured by high efficient driving,wide torque range and low running noise. |
| Safe and reliable: | Equipped with cardoor lock(JMS108), the car door can not be opened in non-level zoneThe door hanger has a safety hook to prevent collision and fall off. |
| Data communication: | Standard l/0 port, Reserving CAN communication port. Equipped with datacommunication function of master control system.Realizing the solutions of elewator digitalization. |
| Multiple certificates: | Doorlock qualified by the NATIONAL ELEVATOR INSPECTION CENTERPassed CE certifications |
| Easy debugging: | Full-closed-loop control technology,High control precision.One-key debugging.Adaptively generate operation curves. |
| Well-adapted: | Driven weight oflanding door and cardoor 200kg, Can be applied to door panelsofdifferent weights for regular passenger elevators |
| High utilization rate ofshaft: | Door operator structure is compact, it is more suitable for the needs ofsmall shaftswith wide opening door and low ceilings. |
| Level of protection: | IP20 |
FAQ
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
