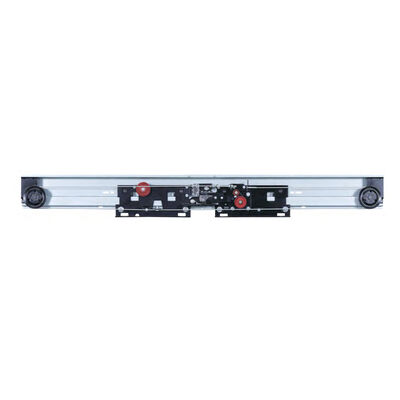

2-Leafs Center Opening Landing Door Device(Fireproof Type / Adiabatic Type)

Safe and reliable:

The door hanger has a safety hook to prevent collision and fall off, passed 45kg soft pendulum test, which conforms to GB/ 7588.1/2 standard requirement.

Self-closing type:

Common weight or common spring self-closing types are optional

Unlocking type:

Standard configuration: Lock on the door panel

Multiple certificates:

Door lock (OMS108) qualified by the NATIONAL ELEVATOR INSPECTION CENTER Passed CE and EAC certifications Fireproof door meet GB/T27903, and passed TUV, EAC, Hong Kong BS certifications

Rated voltage: ≤ AC230V, ≤ DC110V；

well-adapted:

Range of application: common weight type JJ600-JJ1400,common spring type

Height range:

The standard floor height is ≥ HH+500,The minimum floor height is ≥ HH+350

Level of fire resistance rating / protection:

E120, EI120, EI60 optional . Standard configuration: IP20, Optional IP23,IPX3,IP66

• 1. Are the elevator wire ropes durable?
  The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
• 2. Is it dangerous for power failure suddenly during the elevator running?
  If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
• 3. Will us be hurt when it closed suddenly?
  In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
• 4. How the elevator running?
  Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
• 5. Is the escalator installation complicated?
  We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
• 6. Do you have any cerifications?
  Yes, we do with ISO9001 / CCC / CE Certificates for u.
