제품 상세 정보:
|
| 제품명: | 리프트 트랙션 머신 | 운동 중량: | 270kg |
|---|---|---|---|
| 운송: | 바다 배달 | 애플리케이션: | 엘리베이터 |
| 모델: | 리프트 트랙션 머신 | 제품: | 승강기 엘리베이터부 |
| 사용: | 리프트 트랙션 머신 | 짐: | 450~630kg |
| 속도: | 1.0~1.75m/s |

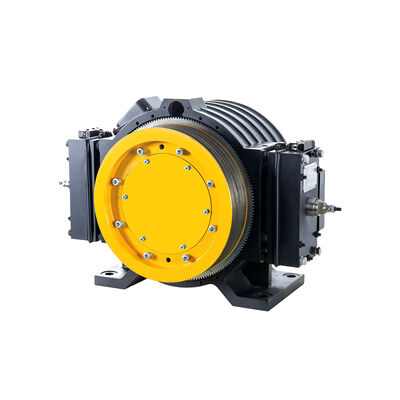

450-630kg Lift Traction Machine 1.0~1.75m/S Speed For Lift Spare Parts
PRODUCT FEATURES
1.Using the block brake, low noise, low temperature rise, low current, quick response time for power failure and reliable braking
2.Motor with outer rotor structure, low noise, low vibration, low temperature rise, high efficiency and energy saving, and with small starting current
3.Adapt different inverters, position sensors
4.Compact structure, suitable for MR and MRL passenger elevator
| Type | WYJ103-08.1/1.0~1.75 |
| Traction Ratio | 2:1 |
| Rated voltage | 380 |
| Rated load | 450 / 630 |
| Max. axis load | 2200 |
| Self weight | 270 |
| Rated speed | 1.0 / 1.5 / 1.6/1.75 |
| Wheel diameter | Φ340 |
| Rope groove | 5-Φ8 |
| L1 | 66.5 |
FAQ
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
